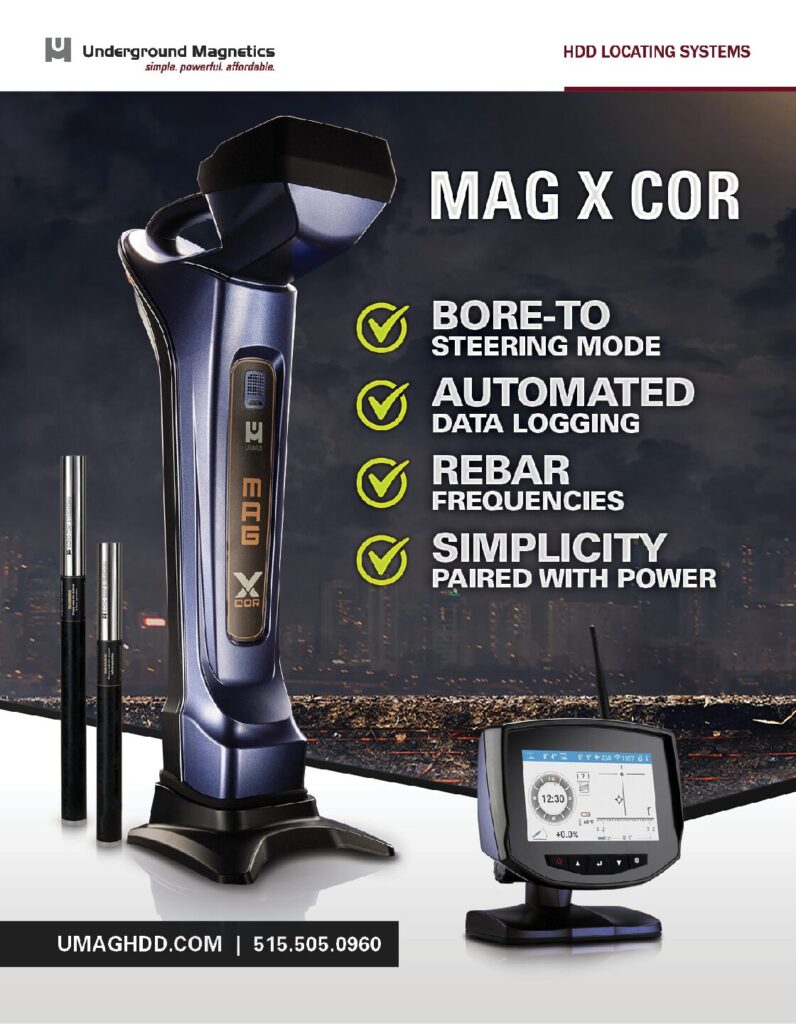

Mag X COR Receiver
Drill with Ease
The Mag X COR provides you with the core features you want and pairs it with the power you have come to know from our locators.
Core Features
- Simplicity Paired with Power
- Premium HDD locator experience in a simplified package
- Stand-up receiver with 4” reflective LCD display
- Color 7” Android-based touch screen drill display
- Tracking-on-the-Fly for fast, accurate, everyday locating
- Built-in Data Logging
- Simplified one-touch logging integrated into the remote drill display
- Rodwise and chart views with the ability to edit and add utility crossings
- Easily emailed directly from the display and synced to the UMmaps web portal
Starting at
$9,000.00
Specifications
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 29 × 9 × 13 in |
| Antenna | Faraday Shielded 3D Antennas |
| Transmitter | Echo 50, Echo 50XF, Echo ST, Echo X-Mini |
| System Frequency | 16 Frequencies, .325kHz – 41kHz |
| Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Radio Frequency | 915 MHz |
| Telemetry | 4 Radio Channels with range up to 3,000 ft (900m) |
| Power | Rechargable Lithium Battery 12.5V |
| Battery Life | 50 hours |
| Waterproof | IP65 |
Spec Sheet
Manual
