Mag X GEO System

Name: Mag X GEO System
SKU: 13138
Price: 27000.00 USD
Availability: InStock

Category: Mag Series Packages

Bore Smarter, Not Harder.

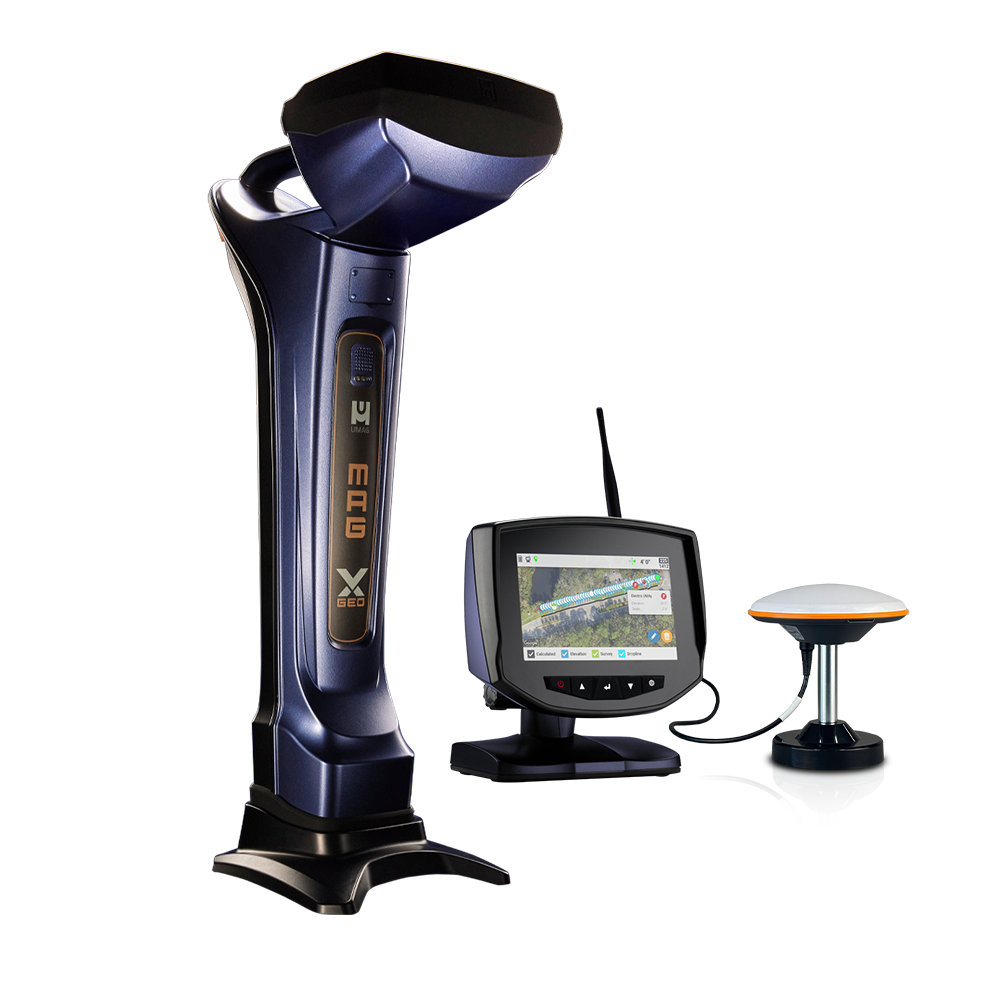

The Mag X Geo builds on our trusted platform with a 7-inch color touchscreen that delivers clear, at-a-glance data. Tactile, multi-function buttons provide intuitive access to key features through fly-up menus.

» Log each rod’s pitch, depth, and GPS data while marking utilities as you expose them.

» View progress in real time with Chart, Map, and Rod Table views to stay on target and reduce post-job cleanup.

» Guide every move with tools like Dropline and Pitch Guide for GPS-directed path and depth control, or engage Bore-To for projected depth and target alignment.

Starting at$27,000.00

as low as

$750

/month*

*Pending credit approval and/or down payment.

Locating System

Transmitter

Add on Utility Locating System

1 × Nexus Pro Utility Locating System

$6,750.00

Precision GPS Data Logging

» RTK-Enabled GPS with 1–3 cm Accuracy
» GPS Tracking including Elevation
» Automatically Record Rod-by-Rod Metrics

On-the-Fly Functionality

» Views: Overhead Aerial, Side Profile Chart, Rod Table
» Tools: Bore-To Steering, GPS Dropline, Pitch Guide
» Logging: Rod Pitch, Roll, Temp, Depth, and GPS Data

Reporting Redefined

» Add Utility Crossings with Type, GPS, and Depth
» Generate, Share, and Sync Reports from Receiver
» Real-time Project Monitoring

Horizontal Directional Drilling Locating System

Specifications

Weight	38 lbs
Dimensions	29 × 9 × 14 in
Antenna	Solid Core 3D Antenna Cluster
Transmitter	Echo 110, Echo 50, Echo 50XF, Echo 60, Echo 70, Echo 75XF, Echo 90, Echo ST, Echo X-Mini
System Frequency	16 Frequencies, .325kHz – 41kHz
Temperature Range	-4°F to 140°F (-20°C to 60°C)
Radio Frequency	915 MHz (US) / 433MHz (EU) / 867 MHz (IN)
Telemetry	4 Radio Channels with range up to 3,000 ft (900m)
Power	Rechargable Lithium Battery 12.5V
Battery Life	15hrs Receiver / 50hrs Display
Waterproof	IP65
GPS	Integrated GPS + RTK
Data Logging	Built-in Data Logging
Communication	4-Channel RF: up to 3,000 ft. /900m Range Dual Telemetry: Unlimited Range over Network
Accuracy	±5%
